Euro 3, Euro 4
1.Product: road sweeper truck and vacuum sweeper;
2.Drive model:4*2,
Stainless steel trash volume(m3)
|
5 ,6
|
Stainless steel water tank volume(m3)
|
3 , 4
|
Discharge angle (°)
|
50
|
Cab
|
With A/C
|
4.Max sweeping width 3metre, sweeping speed 3-15 kilometer/hour, sweepingefficiency >95%, Max granule suction 110 millimetre .
5.Equiped with pump that made in Italy, solenoid valve made in Germany, motor and hydraulic system, the cab equiped withelectric hydraulic centralized control operation system.
6.Chassis brand:We have DongFeng and ISUZU series chassises.

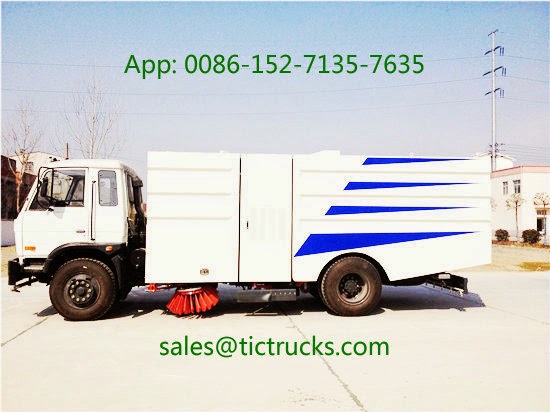

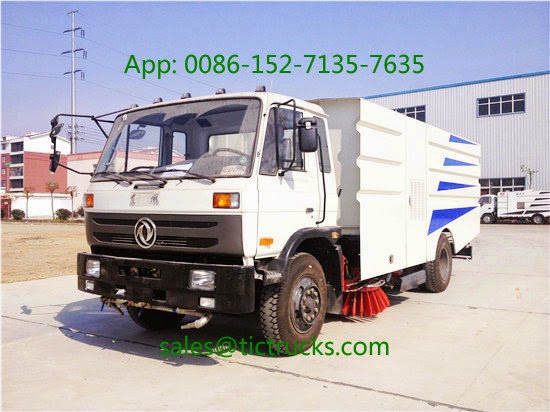

sweep truck
Product model | sweep truck | ||
Overall dimension(mm) | 7650*2480*3200 | ||
Chassis model | EQ5140KLJ | ||
Wheel base(mm) | 4500 | ||
Engine model | B190 33 | ||
Engine rated power(kw) | 140 | ||
Second engine | model | Jiangling JX493Q1 | |
Engine rated power(kw/r/min) | 57/3600 | ||
High-pressure washing | Washing width of water spraying frame(m) | 2.5-3.5 | |
Angel of water spraying frame(o) | 30 both left and right | ||
Cleaning capacity(m2/h) | 25000 | ||
Max. cleaning water pressure(Mpa) | 10 | ||
Cleaning water flow(L/min) | 152 | ||
Spraying water flow(L/min) | 152 | ||
Low-pressure washing | Low pressure sprinkling water flow(L/min) | 600-800 | |
Width of low pressure washing(m) | ≥24 | ||
Squirt gun range(m) | 38 | ||
Working speed | Low-pressure sprinkling | Main engine rev 1200r/min | 7(gear I) 14(gearII) |
High-pressure sprinkling | Second engine rev1700r/min | 0-15 | |
Rated capacity of water tank(L) | 7520 | ||
Kerb weight(kg) | 7495 | ||
Max. gross weight(kg) | 14490 | ||
Max.speed(km/h) | 85 | ||
Max.gradeability(o) | 15 | ||
Braking length(m) | ≤10 | ||
Min. turning diameter(m) | <16 | ||
Approach/departure angle(o) | 25/20 | ||
Min. ground clearance(mm) | 350 | ||
Low-pressure water pump | 65QZB-50/110N | ||
High-pressure water pump&accessories | KL45,P51/135-90 | ||
Low-pressure centrifugal | 80QSB-60/90 | ||
Hydraulic module | QX160-31-300 | ||
Oil cylinder | HSGL-32/18E-131 | ||
A winter service vehicle (WSV), or snow removal vehicle, is used to clear thoroughfares of ice and snow Winter service vehicles are usually based on a dump truck chassis, with adaptations allowing them to carry specially designed snow removal equipment. Many authorities also use smaller vehicles on sidewalks, footpaths, and cycleways. Road maintenance agencies and contractors in temperate or polar areas often own several winter service vehicles, using them to keep the roads clear of snow and ice and safe for driving during winter. Airports use winter service vehicles to keep both aircraft surfaces, and runways and taxiways free of snow and ice, which, besides endangering aircraft takeoff and landing, can interfere with the aerodynamics of the craft.
A street sweeper or street cleaner may refer to either a person's occupation, or a machine that cleans streets. A street sweeper cleans the streets, usually in an urban area.
Street sweepers have been employed in cities since sanitation and waste removal became a priority. A street-sweeping person would use a broom and shovel to clean off litter, animal waste and filth that accumulated on streets. Later, water hoses were used to wash the streets.
Machines were created in the 19th century to do the job more efficiently. Today, modern street sweepers are mounted on truck bodies and can vacuum debris that accumulates in streets
2. Sweeper Truck technology from American and made a lot of optimized design.
3. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
4. With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
5. An automatic clutch is set up on the transmission between the vice-engine and the fan, wshich can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown.
6. The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Beiben road sweeper truck
